Optex Ax 100 200tfr Picture

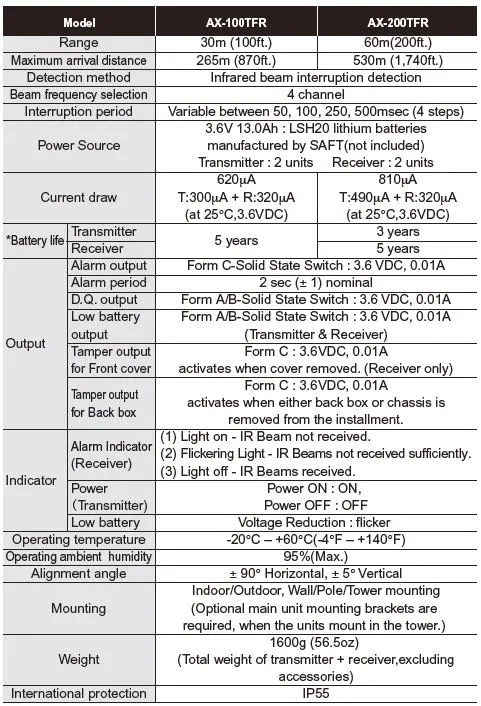

AX-200TFR Datasheet Screen Shot 2021 08 12 at 8 39 19 AM

Product Details

AX-200TFR Range
AX-200TFR Range

The Battery Powered AX-200TFR is a revolution in the perimeter security industry, offering a significant cost saving alternative to a traditional hardwired system. No trenching or wiring is required, drastically reducing labor time and installation costs. The unit comes wireless ready with a multi functional back box and is compatible with most manufacturers wireless systems. The AX-200TFR comes with four 3.6V batteries (two for each side), with an average lifespan of 3 years.

Features:
  • Long life battery (batteries included)
  • Easy battery replacement
  • Triple tamper functions
  • Low battery output and LED indication
  • Intermittent output function
  • Compatible with numerous wireless transmitters
  • Battery saving time function for wireless trasnmitters
  • Selectable 4 channel beam frequencies
  • 99% beam blocking stability
  • A.G.C circuit
  • IP55 structure
  • Adjustable beam interruption time

OPTEX National Defense Authorization Act Declaration

Applications

  • Buildings
  • Perimeter
  • House
  • Garden

Key Features

  • Wireless Ready 200ft. Outdoors, Battery-Powered.
  • 4-Channel Photoelectric Detector (Batteries Included)
  • Long life battery (batteries included)
  • Easy battery replacement
