*Product discontinued, for reference only. For replacement, please see the Redscan Pro Series
The REDSCAN RLS-3060L is an innovative laser scan detector. It can detect a moving object's size, speed, and distance from the detector and process that information with a unique algorithm, which results in high reliability detection of people with minimal false alarms.

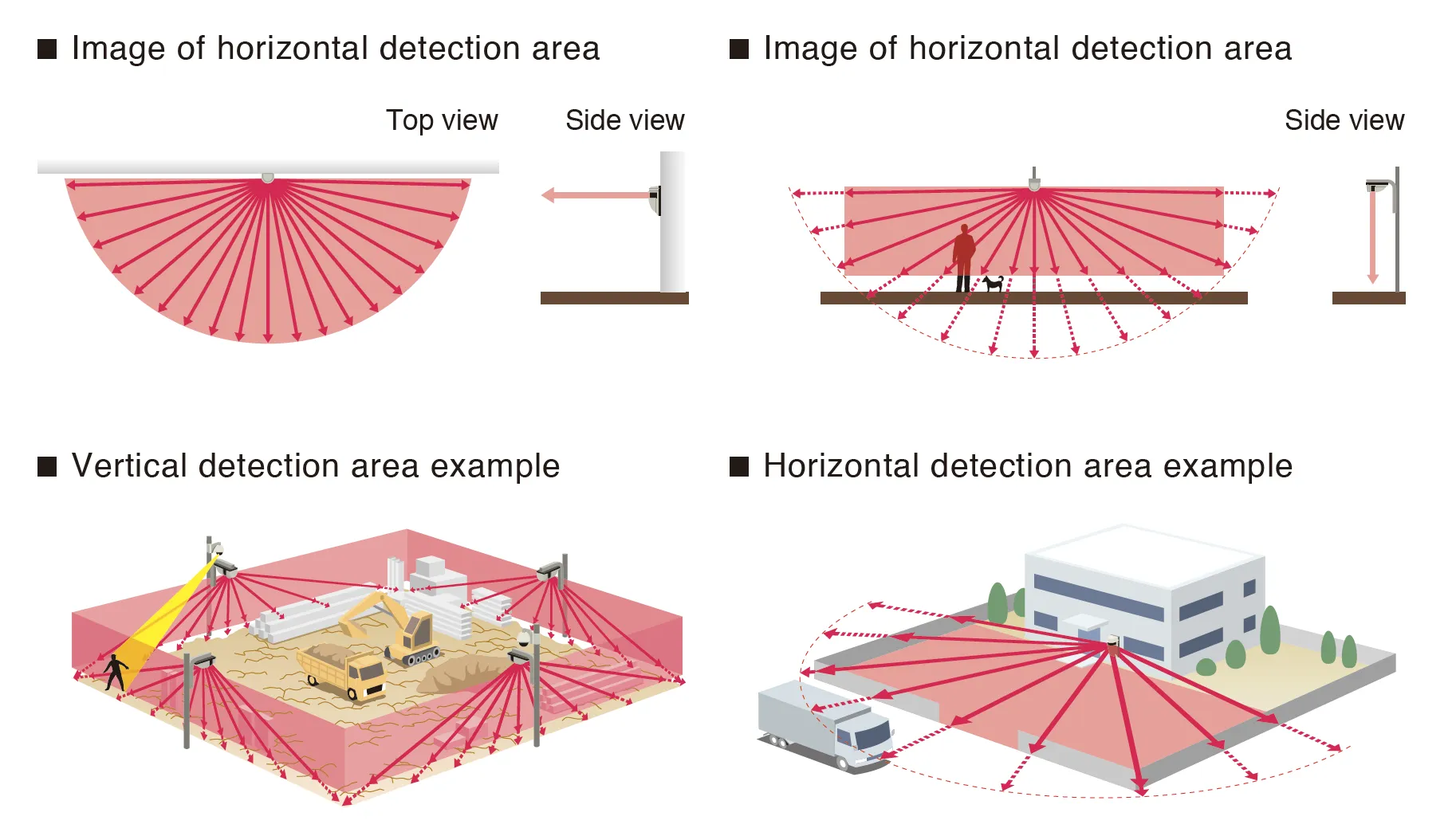

When vertical detection area is selected, it creates a maximum 60m (200ft.) detection area that functions like an invisible wall. When horizontal detection area is selected, it creates a detection area with a radius of maximum 30m (100ft.) and an arc of 190°.
The RLS-3060L is a low cost, high performance advanced intrusion device with four adjustable detection zones and linked outputs for PTZ camera control. It brings detection solutions for: fence line, building protection, rooftop, and narrow boundary zone with simplified controls for easy set up.
| Features: | ||
|
Product Discontinued
Certification Required
Applications
- Buildings
- Perimeter
- Approach
- Roof / Ceiling
- House
- Garden
- Garage
- Driveway
Key Features
- 30m radius for 190 degree range
- Vertical and horizontal mounting
- Unique detection algorithm
- Automatic area setting function
- UDP Broadcast
- UDP Unicast
- UDP Broadcast & TCP
- UDP Unicast & TCP
- First & Last Name
- Job Title
- Company Name
- Telephone Number
- Project Name
The Redscan RLS-3060L and RLS-3060SH both require PoE+.
The Redscan series generate a Redwall Event Code. This is a simple ASCII character code which can be sent via TCP/IP (for example to a VMS). The Redscan Event Code communication can be set as follows:
In addition to the above, with the RLS-2020 there is also an HTTPS integration.
It can be downloaded from the following link: http://www.optex.co.jp/e/redwall/download/
The following video presents the key features and differences of RLS-3060 firmware v8 vs v7.
If you are interested in getting Installation training and certification for Redscan, please email certifications@optexamerica.com with the following information:
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
FAQs
The Redscan RLS-3060L and RLS-3060SH both require PoE+.
The Redscan series generate a Redwall Event Code. This is a simple ASCII character code which can be sent via TCP/IP (for example to a VMS). The Redscan Event Code communication can be set as follows:
- UDP Broadcast
- UDP Unicast
- UDP Broadcast & TCP
- UDP Unicast & TCP
In addition to the above, with the RLS-2020 there is also an HTTPS integration.
It can be downloaded from the following link: http://www.optex.co.jp/e/redwall/download/
The following video presents the key features and differences of RLS-3060 firmware v8 vs v7.
If you are interested in getting Installation training and certification for Redscan, please email certifications@optexamerica.com with the following information:
- First & Last Name
- Job Title
- Company Name
- Telephone Number
- Project Name
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
