Product Details

The SIP-404 PIR detector is designed to trigger CCTV cameras in small and mid-sized outdoor areas. It has an intelligent detection system that uses data on the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. Mechanisms for easy installation enable accurate adjustment of the detection area at setup, which results in more reliable operation. The recommended AVF-1 Area View Finder allows the installer to visually identify the detection area. The SIP-404 is also equipped with anti-rotation and anti-masking, two features that help detect vandalism or tampering on the unit. These functions provide greater security in operations.

**AVF-1 & AWT-3 Required tools for Proper Installation**

For Installation Training and Certification for this product, please email certifications@optexamerica.com with the following information:
  • First & Last Name
  • Job Title
  • Company Name
  • Phone Number
  • Email
  • Project Name

Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)

Features:
  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
  • Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer

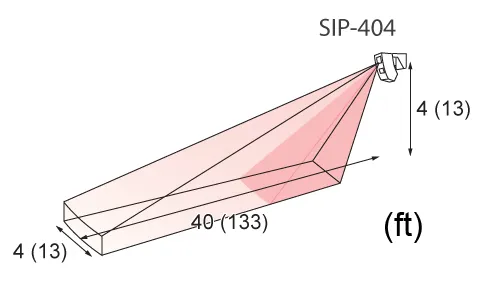

  • 7.6ft. to 13ft. mounting height
  • Independant sensitivity for near and far detection zones
  • Detection logic selector
  • Independant N.C. and N.O. outputs
  • Adjustable alarm interval time

OPTEX National Defense Authorization Act Declaration

Applications

  • Buildings
  • Approach

Key Features

  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
