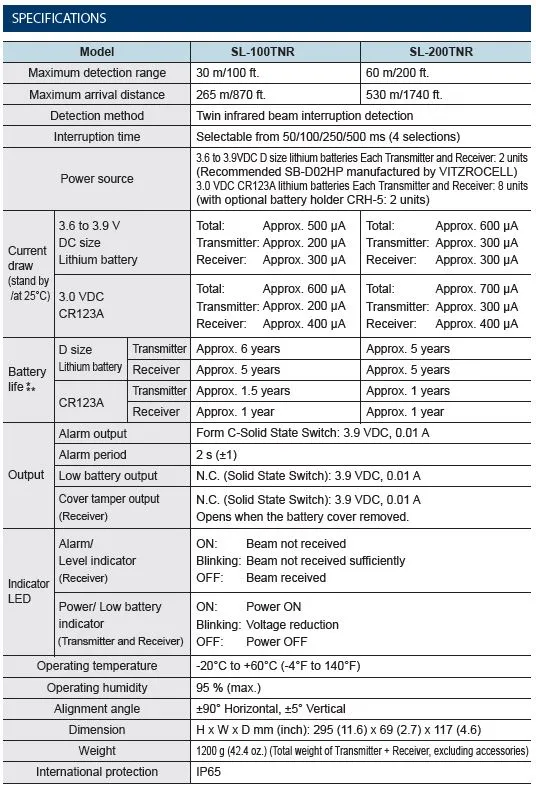

SL-200TNR Datasheet

Product Details

The SL-TNR series offers a cost-effective and versatile solution for protecting a perimeter, where cabling is an issue or inconvenient.

Ideal for small perimeters, flat roofs, and open areas, the active infrared dual beam set offers a lot of flexibility with its hybrid power options, where the transmitter is powered by Saft LSH-20 batteries, and the receiver can be hardwired.

The SL-TNR series utilizes high-grade aspherical lenses and also has an anti-frost design with IP65 weather protection to improve its durability during harsh weather conditions.

200ft outdoor / indoor hybrid battery-powered photoelectric detector

Receiver: hardwired, transmitter: battery-powered. PCU-5 and 2 batteries included.

Features:

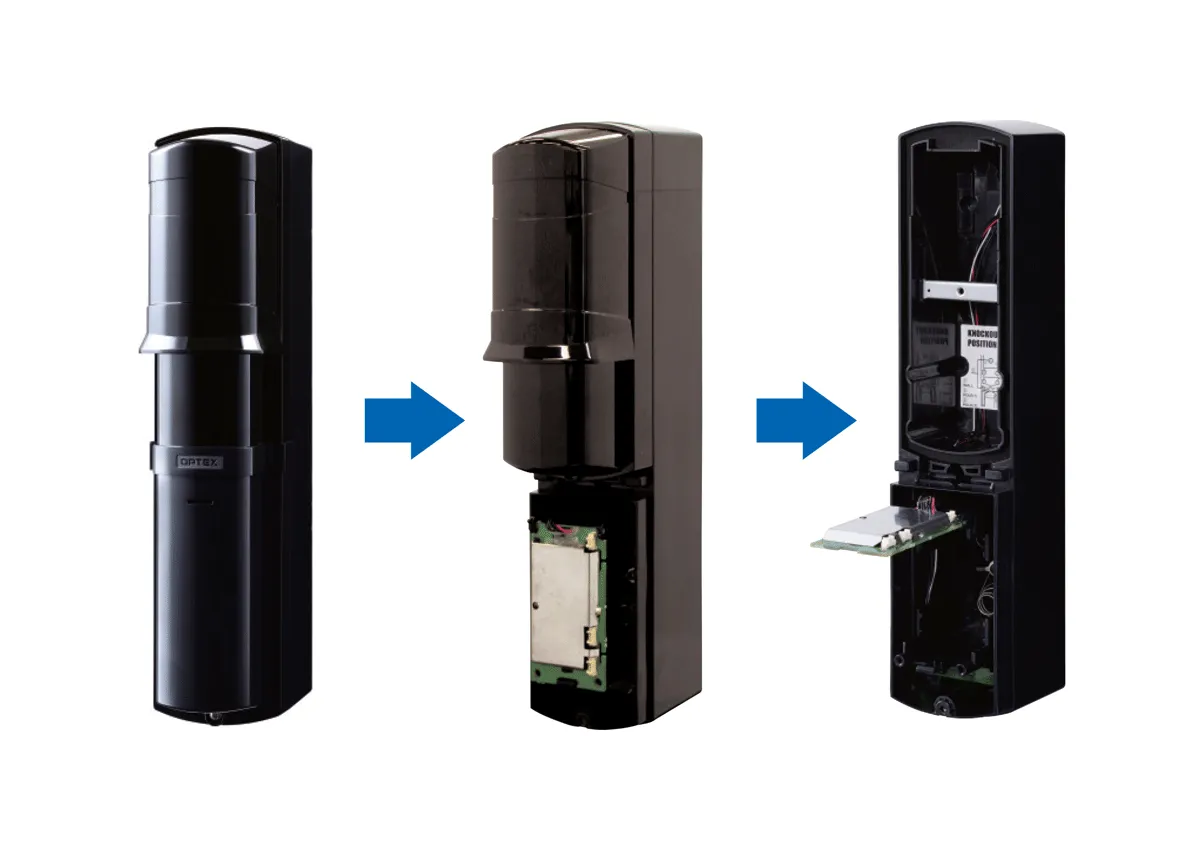

Great flexibility with power options: Hybrid or wireless options available. Simplified battery replacement: Batteries can be accessed easily without touching the main unit, eliminating the need to re-align the beams. IR communication for low battery signal: Infrared communication between the transmitter and the receiver which signals when the battery status is low. Innovative mechanical design: Sniper viewfinder with 2x magnification, anti-frost main unit cover, aspherical optical lens, weather protection, and wireless transmitter storage space.
