Product Details

The SL-200QDM includes even more features to protect against false and missed alarms caused by mis-alignment and environmental issues. With 200ft. of outdoor detection range and 4-channel beam frequency selection, the QDM model is perfect for high security perimeter applications. New features include:

Dual modulation - Enhances signal discrimination against potential interferences

Quad beam - Dramatically cuts down on false alarms caused by birds and falling leaves

Sniper ViewFinder and Alignment Sound Assist - The new telescope lens on the SL Series has a high level of visibility for optical alignment work. Even at 350ft., a perfect installation and stable performance can be achieved in minimal time.

Sunshine Protection Technology - The SL Series has triple layer construction to allow for better performance against external light sources. (The sun, car headlights, mercury-vapor lamps and fluorescent lights)

Beam Power Control Selector - Allows you to manually adjust the beam power to help prevent crosstalk due to reflection, interference due to unstable signal or noise when using multiple beams over long distances, and allows the detector to be used in shorter than rated distances.

Automatic Transmit Power Control - The A.T.P.C. automatically controls, adjusts and optimizes the power of the beam and maintains optimal performance. This decreases false and missed alarms caused by fog, frost, cross talk and signal saturation.

BAU-4 Compatible - The BAU-4 beam alignment unit automatically and accurately adjusts the optical access. This allows peak performance and gives one technician the ability to align a 200ft, 350ft or 650ft SL detector without additional help.

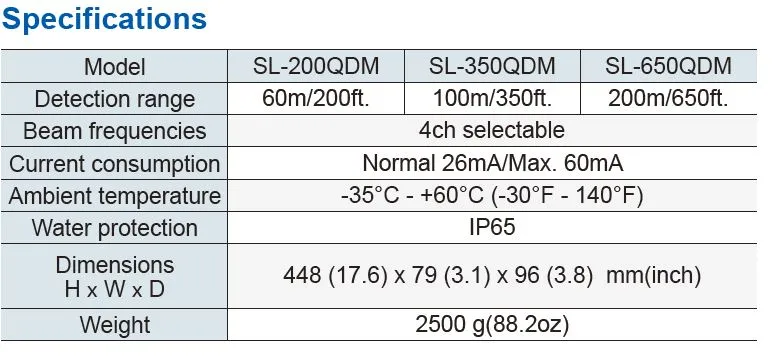

Features:
  • Quad beam detection
  • Double modulated beam - enhances signal discrimination against potential interferences
  • Smart design
    • Slim body design
    • Easy-to-see vivid interior color for optical alignment
    • IP65 waterproof structure
    • Sniper Viewfinder® for easy alignment
  • 4 channel beam frequency selector
  • Alignment level indicator
  • Viewfinder with 2X magnification
  • Heater Option for cold climates (HU-3, sold seperatly)
  • UL/c-UL Listed
  • Beam interruption adjustment function
  • D.Q. circuit (environmental disqualification)
  • Tamper function
  • Beam power control selector
  • Alarm memory
  • Sound assist function
    • Optical alignment
    • Beam reception status
    • Walk test
  • Auto Transmit Power Control (A.T.P.C) to optimize the beam power
  • Integrated Alignment Status Communication (I.A.S.C) to communicate the transmitter and receiver
  • Re-transmitting circuit function
  • BAU-4 Compatible (BAU-4 Automatic beam alignment tool sold seperately)



Applications

  • Perimeter
  • Roof / Ceiling
  • Driveway

Key Features

  • 200ft. Outdoor 4-Channel Quad Photoelectric Detector
  • Double Modulation and Automatic Transmit Power Control
  • 4 channel beam frequency selector
  • Alignment level indicator

FAQs

The key success of a reliable active infrared intrusion system relies on the accuracy of the beam or beam tower alignment. If the transmitting ‘beams’ and the receiving ‘beams’ are not well aligned, there is a risk of severe environmental interference from fog and sunlight, even more so if the beams are 350 feet or 650 feet apart.

When installing beam towers around a perimeter there is the tendency to think that the towers should be at a 90 degree angle from each other. Actually, a 90 degree angle can restrict the view for the signal due to the tower extrusion lip. Our technical team recommends mounting the beam towers at a 45 degree angle on the ground, this allows the beam mounted inside the tower a clear view and gives the installer some flexibility for alignment.

If you are using a floor mount enclosure, the same principle applies: you should dig a 45 degree angled square in the ground to install the ground bracket. For a more efficient method, our tech team highly recommends using theTW SSL (Included in our beam enclosure) an adjustable mounting plate specifically designed for our Smart Line Beam series. The Smart Line beam can be fixed on to the TW SSL then the plate can be clipped in to the beam tower. Using this method, alignment can be easily facilitated by simply adjusting the plate up or down in the grooves to set it at the right height.

OPTEX also recommends using a voltmeter during the beam alignment process. Please refer to the owner's manual for the proper voltage needed for beam alignment.

The beams can operate between 10.5vDC to 30vDC. When connecting to an intruder system, 12vDC will be sufficient. If however, you’re using a heater unit (HU-3) you will need a 24vDC supply. Our wireless beams will need 2 or 4 3.6v lithium batteries.
