Product Details

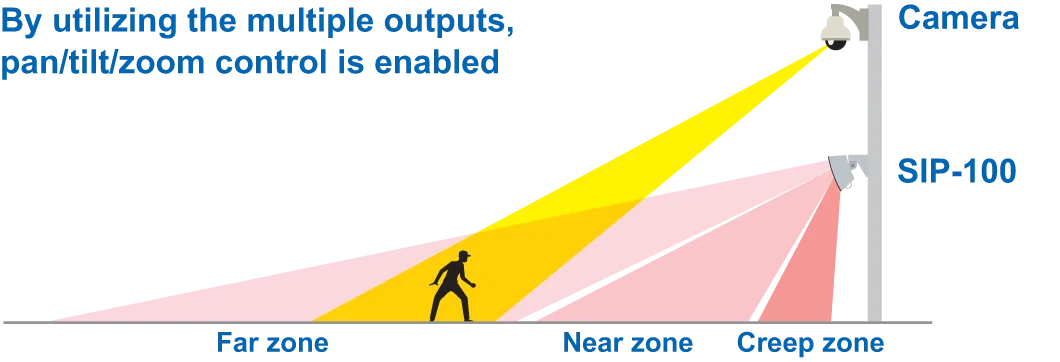

The SIP-100 offers long range detection for triggering CCTV systems in large areas outside. It has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. In addition,the SIP-100 offers a total of three outputs: two separate outputs for far and near areas and another for creep-zone detection. Multiple outputs are useful for activating video transmission systems and controlling PTZ cameras. The detection angle in the main area of the SIP-100 can be adjusted to easily match a camera's field of view and the unit is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit.

**AVF-1 & AWT-3 Required tools for Proper Installation**

For Installation Training and Certification for this product, please email certifications@optexamerica.com with the following information:
  • First & Last Name
  • Job Title
  • Company Name
  • Phone Number
  • Email
  • Project Name

Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)

Features:
  • Two in one detector with an independent creep zone sensor unit to cover the area between the detector and the building
  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm
  • Double Quad pyro-elements with patented Double Conductive Shielding for main area
  • Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer
  • 7.5ft. to 13ft. mounting height
  • Independent sensitivity for creep/ near and far detection zones
  • Detection logic selector
  • Detection range selector
  • 2x N.C. and N.O.
  • Independent outputs for main areas
  • Adjustable alarm interval time


OPTEX National Defense Authorization Act Declaration

Applications

  • Buildings
  • Perimeter
  • Approach

Key Features

  • Two in one detector with an independent creep zone sensor unit
  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm

FAQs

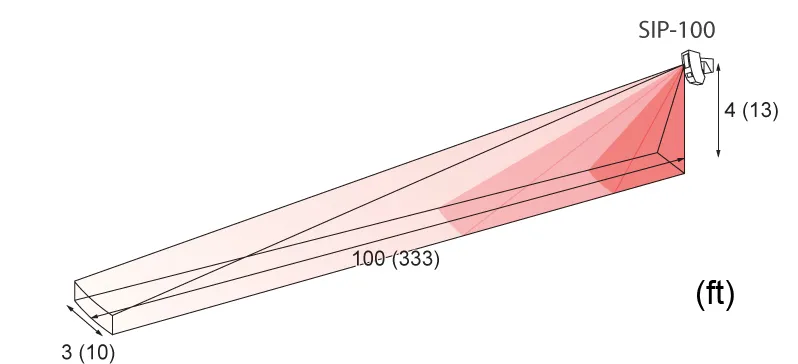

Once the Redwall SIP unit is mounted on the wall or a pole, ideally at a height of 13 feet – or at least above 7 feet, the View Finder should be plugged onto the sensor using the two holes to secure it. The correct viewing plate should be inserted – each SIP model has a corresponding viewing plate. Looking through the plate, the sensor should be adjusted to ensure that it is grounded at the maximum detection distance. For instance, for a SIP-3020, the sensor should be grounded (not directed towards the sky) at 100 feet. Additionally, it is best to avoid having the detection area right at the edge of the security area, rather it is best practice to leave 3 feet either side. If the detection area is 65 feet wide, it is better to center the view at 36 feet from the edge on either side. If required, masking sticks can be used to mask part of the detection area. Watch our video tutorial

The detection will be less accurate. Ensure that the SIP is not installed higher than the recommended height which is 13 feet.
