Product Details

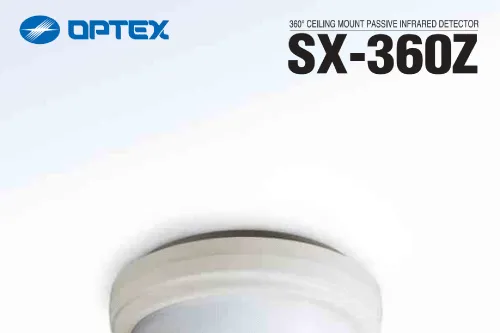

The SX-360Z ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides 360° of unsurpassed detection performance at any ceiling height up to 16ft high. By simply twisting the units domed lens, the detection pattern can be easily adjusted at any installation height, making it one of the most flexible ceiling detectors on the market. This, combined with its compact design, makes the SX-360 suitable for a variety of applications large or small, residential or commercial.

Features:
  • Flexible Pattern Adjustment with Zoom Function (Patent Listed)
  • Circular Detection Area with 276 Dense Zones
  • Patented Multi-Focus Lens
  • Selectable Pulse Count: 1,2 to 4
  • Selectable Sensitivity : High, Medium or Low
  • LED On/Off Switch
  • In-Line Quad Element (Triple Dual)
  • RFI Immunity 30V/m
  • Multilevel Pattern
  • 5 Year Limited Warranty
  • UL/ULC Listed


Applications

  • Buildings
  • House

Key Features

  • Mounts from 8ft. to 16ft. high
  • Flexible Pattern Adjustment with Zoom Function (Patent Listed)
  • Circular Detection Area with 276 Dense Zones
