Product Details

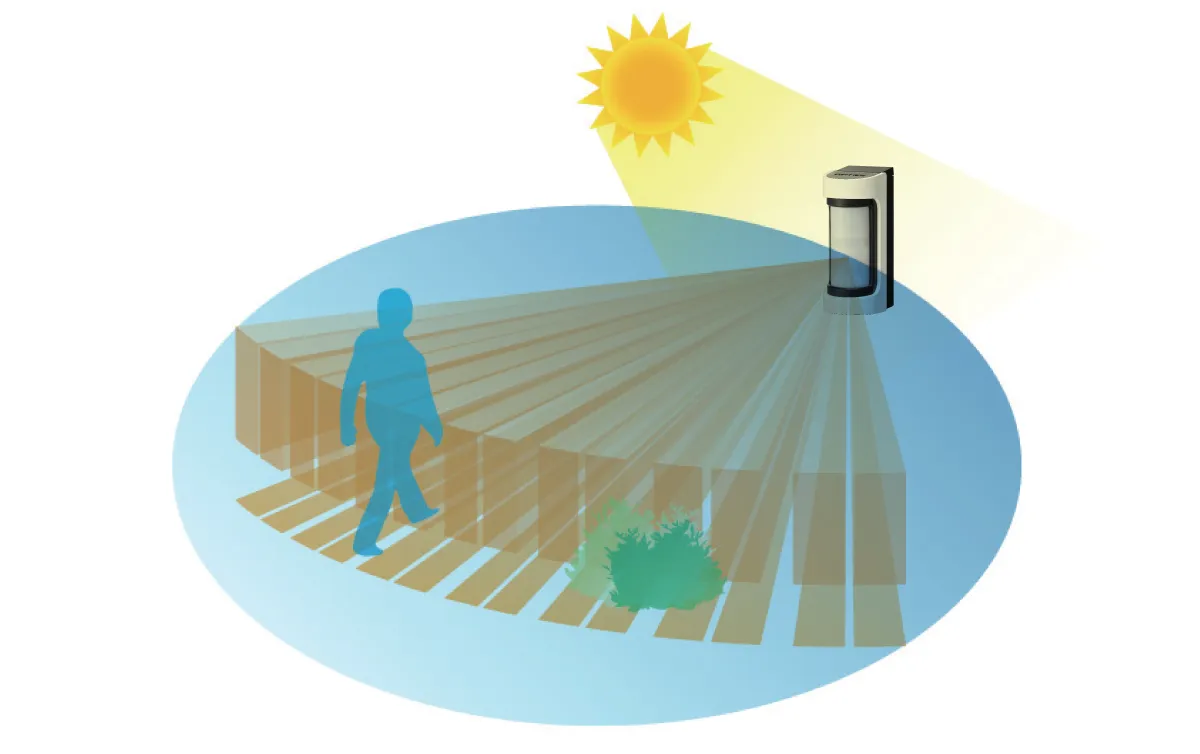

The VX Shield series is a range of four outdoor PIR sensors providing 40ft by 90° detection coverage, ideal for all residential and small commercial sites. Featuring customizable design and high accuracy against false alarms, the VX Shield series includes two PIR models and two dual-techs, all equipped with digitally-enhanced signal recognition logic as well as super multidimensional analysis (SMDA). Analyzing detection patterns and environmental information, SMDA improves immunity against temperature changes or moving trees and vegetation, reducing the risk of false alarms.

The VX Shield series has been designed to make the installation phase as easy as possible, with the inclusion of a rotation lock to simplify opening and closing of the detector’s cover. Sensor adjustment components have also been colored blue to make it obvious which parts are used to manipulate the sensor detection area. A spirit level has been incorporated as well, along with an automatic walk test mode which starts automatically when the cover is closed.

Wireless-ready Dual-Tech Model with Anti-Masking

Features:
  • Intelligent 40ft wireless dual-tech with animal tolerance
  • Active infrared anti-masking
  • Easy set up with rotation lock for easy opening/closing of the cover
  • Sensor adjustment components are colored blue for easier identification of parts that manipulate sensor detection area
  • Spirit level
  • SMDA Logic: Differentiates nuisance false alarms & genuine intrusions
  • Automatic walk test mode starts upon closing the cover
  • Tamper output activates when face cover/back box is removed
  • Versatile design


Applications

  • Buildings
  • Perimeter
  • Approach
  • Roof / Ceiling

Key Features

  • Wireless-ready Dual-Tech Model with Anti-Masking
  • Intelligent 40ft wireless dual-tech with animal tolerance
  • Active infrared anti-masking
  • Easy set up with rotation lock for easy opening/closing of the cover

FAQs

Power up the sensor as normal and close the cover. When the cover is on, an automatic walk-test function is enabled. After 3 minutes, the sensor will flash quickly for 5 seconds to indicate that the walk test is going to expire.
